Product Details
Place of Origin: CHINA
Brand Name: FC
Certification: CE/ISO9001
Model Number: FC13005
Payment & Shipping Terms
Minimum Order Quantity: 1000SQUARE METER
Price: NEGOTIATED
Packaging Details: 1,50kn-50kn:3.95m(W)*l100m(L) per roll,about 53000m2/40HQ 2,100kn-100kn:3.95m(W)*l100m(L) per roll,about 41000m2/40HQ
Delivery Time: 15-20DAYS
Payment Terms: D/A, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 Square Meter/Square Meters per Day
MATERIAL: |
FIBERGLASS |
COLOUR: |
BLACK |
WIDTH: |
1-6M |
STRENGTH: |
50-200KN |
MESH SIZE: |
25*25 40*40 50*50 |
PORT: |
SHANGHAI OR NINGBO |
MATERIAL: |
FIBERGLASS |
COLOUR: |
BLACK |
WIDTH: |
1-6M |
STRENGTH: |
50-200KN |
MESH SIZE: |
25*25 40*40 50*50 |
PORT: |
SHANGHAI OR NINGBO |
50-200KN Custom geogrid reinforcing fabric/reinforce slope self-adhesive fiberglass geogrid
1) fiberglass geogrid
2) Materials:fiberglass
3) Tensile strength:MD/CD:20~200kn/m
4) Width:1~6m

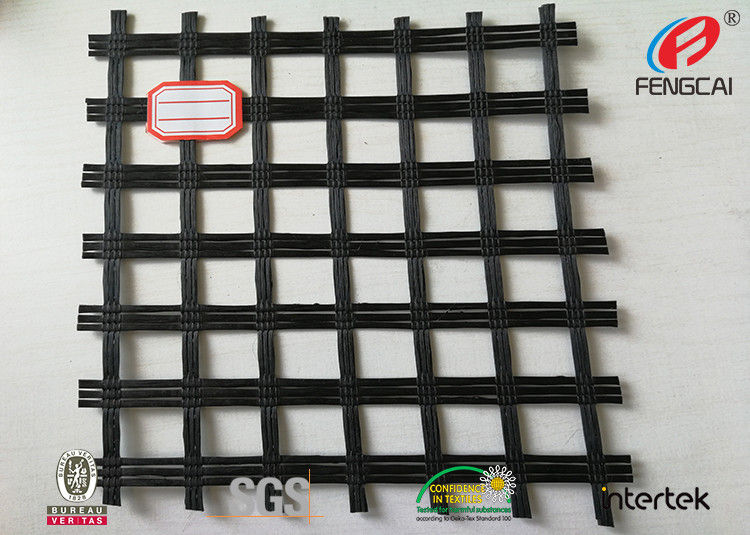

Self-adhesive Geogrid is the pavement reinforcement geogrid which composed of a series of fiberglass strands coated with an elastomeric polymer and formed into a grid structure. It’s the biaxial fiberglass geogrid with high adhesion strength reinforced overlays.Each strand has a remarkably high tensile strength, as well as a high modulus of elasticity at low elongation,making it stronger than steel by weight. The open grid structure promotes the efficient transfer of stress from both overlying and underlying asphalt layers.
| Item Name | Self-adhesive Geogrid |
| sample | Available |
| Raw Matericl | Fiberglass |
| Tensile strength | Reinforcement |
| Coating | Customerised |
| color | white,black ect |
| Length | Customerised |
| Width | Customerised |
| Application | Building Construction |
| Package | Customerised |
| Product Keywords | Geogrid |
Application
• Reinforces asphalt concrete overlays in pavement construction.
• Utilized in the road widening
• Utilized in repaving of the airport upgrade.
• Reinforce roadbeds, railway, bridges, hydraulic, slope.
| Type | Item No. | Tensile Strength | Elongation(%) | Mesh Size | Width | ||
| (kN/m) | (mm×mm) | (m) | |||||
| Warp | Weft | Warp | Weft | ||||
|
Self-adhesive Geogrid
|
EGA5050 | ≥50 | ≥50 | ≤4 | ≤4 | 12~50 | 1~6 |
| EGA100100 | ≥100 | ≥100 | ≤4 | ≤4 | 12~50 | 1~6 | |
| EGA100200 | ≥100 | ≥200 | ≤4 | ≤4 | 12~50 | 1~6 | |
| EGA200200 | ≥200 | ≥200 | ≤4 | ≤4 | 12~50 | 1~6 | |
Feature
1. Can be used under super-low temperature and have good thermal stability
2. High tensile strength and low elongation
3. Good physical and chemical stability, strong resistance to biological erosion and climate changes.
Advantage
1. Super high temperature and ultra low temperature performance, prevent the asphalt pavement cracks
2. High tensile strength
3. No long term creep, and good thermal stability
4. Good compatibility with asphalt mixture
5. Stable physical and chemical properties, good resistance against biological erosion and climate change
