Product Details
Place of Origin: CHINA
Brand Name: FC
Certification: CE/ISO9001
Model Number: FC13001
Payment & Shipping Terms
Minimum Order Quantity: 5000SQUARE METER
Price: NEGOTIATED
Packaging Details: 1,50kn-50kn:3.95m(W)*l100m(L) per roll,about 53000m2/40HQ 2,100kn-100kn:3.95m(W)*l100m(L) per roll,about 41000m2/40HQ
Delivery Time: 15-20DAYS
Payment Terms: D/A, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 Square Meter/Square Meters per Day
MATERIAL: |
POLYESTER |
THCHNICS: |
Biaxial Geogrid |
WIDTH: |
1-6M |
LEAD TIME: |
15DAYS |
MESH SIZE: |
25*25 40*40 50*50 |
LOAD PORT: |
SHANGHAI OR NINGBO |
MATERIAL: |
POLYESTER |
THCHNICS: |
Biaxial Geogrid |
WIDTH: |
1-6M |
LEAD TIME: |
15DAYS |
MESH SIZE: |
25*25 40*40 50*50 |
LOAD PORT: |
SHANGHAI OR NINGBO |

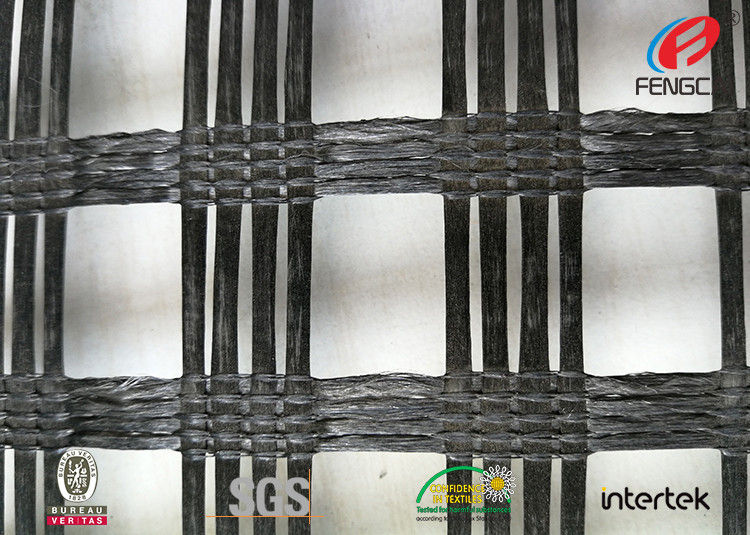

polyester biaxial geogrid reinforcement fabric for soil foundation
1) Polyester geogrid (PET geogrid)
2) Materials:polyester
3) Tensile strength:MD/CD:30~150kn/m
4) Width:1~6m
Polyester geogrid (PET geogrid) is a new kind of favorable earthwork base material to strength the road surface and roadbed,which composed of high strength polyester yarns coated with an inorganic sizing agent.
It has the following performance:
1) high tensile strength,low elongation
2) tear-resistant
3) anticorrosive
4) good anti-aging and alkali-resistance
APPLICATIONS:
1. Reinforce roadbeds in soft soil for road,railways,airfields,irrigation channels.increase of stability and loading capacity of fundus
2. Reinforce riverside,embankment and side slope
3. Strengthen the surface of the roads and bridges
Polyester Geogrid Properties
| Model |
JBGS 3030 |
JBGS 5050 |
JBGS 8080 |
JBGS 100100 |
JBGS 120120 |
JBGS 6030 |
JBGS 8050 |
JBGS 80030 |
JBGS 100030 |
JBGS 13025 |
|
|
Tensile strength ≥ |
weft | 30 | 50 | 80 | 100 | 120 | 60 | 80 | 800 | 1000 | 130 |
| warp | 30 | 50 | 80 | 100 | 120 | 30 | 50 | 30 | 30 | 25 | |
| Elongation (%) | 10 or 13 | ||||||||||
| Mesh size(mm) | 25×25 or 12.5*12.5 | ||||||||||
| Width(m) | 2 or 4 or 5.2 or 6 | ||||||||||
Product Description
Reinforcements geogrid basalt fiber geogrid/fiber glass geogrid
Basalt fiber geotextile (geogrid) is a kind of semi-rigid products, which uses high-strength basalt fibers to produce gridding base material with advanced knitting process, and then treated by surface coatings. Both warp and weft directions are high tensile strength and low elongation. Breaking elongation is 3.1%. The properties are high-temperature resistance, cold resistance (-260℃-650℃), acid etching resistance , little creep, high strength, and little deformation. It is acid-resistant and alkali-resistant, low-temperature and high-temperature resistant, thermal and sound insulation. Its tensile strength is better than that of lager tows carbon fiber, and the breaking elongation is even better than small bunch carbon fiber. It has better compression strength, shearing strength, and applicability & aging resistance in severe environment, etc.
Feature
1. Can be used under super-low temperature and have good thermal stability
2. High tensile strength and low elongation
3. Good physical and chemical stability, strong resistance to biological erosion and climate changes.
Advantage
1. Super high temperature and ultra low temperature performance, prevent the asphalt pavement cracks
2. High tensile strength
3. No long term creep, and good thermal stability
4. Good compatibility with asphalt mixture
5. Stable physical and chemical properties, good resistance against biological erosion and climate change
Application
1, Subgrade strengthening and pavement repairing for highways, railways and airports.
2, Subgrade strengthening of perpetual load bearing,such as large parking lots and cargo terminals.
3, Slope protections of highways and railways
4, Culvert reinforcing
5. Mines and tunnels reinforcing.
